Audio manuals and audio service pdf instructions. Find the user manual you need for your audio device and more at ManualsOnline. Page 14 of Samsung Speaker System HW-F355 User Guide ManualsOnline.com.

21

EnG

troubl

E

shootin

G

Before requesting service, please check the following.

symptom

check

remedy

the unit will not turn on.

• Is the power cord plugged into

the outlet?

• Connect the power plug to the

outlet.

a function does not work when the
button is pressed.

• Is there static electricity in the

air?

• Disconnect the power plug and

connect it again.

sound is not produced.

• Is the unit properly connected

to your TV?

• Is the Mute function on?
• Is the volume set to minimum?

• Connect it correctly.
• Press the Mute button to

cancel the function.

• Adjust the volume.

the Picture does not appear on a tV
when the function is selected.

• Is the TV connected properly?

• Connect it correctly.

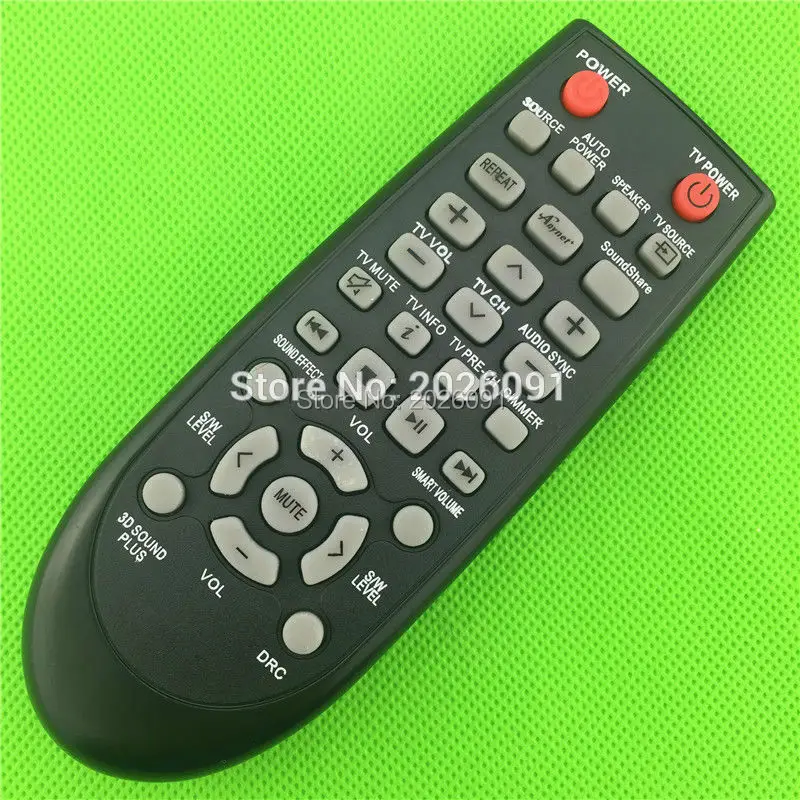

the remote control does not work.

• Are the batteries drained?
• Is the distance between remote

control and main unit too far?

• Replace with new batteries.
• Move closer to the unit.

the sound from the left/right
channels are reversed.

• Are the left/right audio output

cables from the TV connected
properly?

• Check the left/right channel and

connect it/them correctly.

the soundshare (tV pairing) failed.

• Does your TV support

SoundShare?

• Is your TV firmware the latest

version?

• Does an error occur when

Reviews

connecting?

• Reset the TV MODE and

connect again.

• SoundShare is supported by

some Samsung TVs released
after 2012. Check your TV to
see if it supports SoundShare.

• Update your TV with the latest

Samsung Hw F355 Sound Bar User Manual Pdf

firmware.

• Contact the call center.
• Press button for 5 seconds

to reset the product.

troubleshooting

Advertising
Popular Brands
Popular manuals
Advertising

Sound Bar Reviews

22

sPecificatiOns

Model name HW-F350/ HW-F355

generaL

Power supply

DC 24V

Standby power consumption

0.45W

Power

consumption Main unit

23W

USB

5V/0.5A

Weight

Main unit

3.86 Ibs

Subwoofer

(PS-EW1-2)

6.61 Ibs

Dimensions

(W x H x D)

Main unit

Samsung hw f355 sound bar user manual free

37.13 x 1.93 x 2.36 inches

Subwoofer

(PS-EW1-2)

5.98 x 11.81 x 11.18 inches

Operating temperature range

+41°F to +95°F

Operating humidity range

10 % to 75 %

aMPLifier

Rated output

power

Main unit

30W/CH, 8O

HM,

THD = 10%, 1kHz

Subwoofer

(PS-EW1-2)

60W, 3O

HM,

THD = 10%, 100Hz

S/N ratio (analog input)

60dB

Separation(1kHz)

50dB

Samsung Hw F355 Sound Bar

* S/N ratio, distortion, separation and usable sensitivity are based on measurement using AES (Audio

Engineering Society) guidelines.

Sound bar for tv

*: Nominal specification
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.

appendix

As an ENERGY STAR Partner, Samsung
has determined that this product or product
models meets the ENERGY STAR guidelines
for energy efficiency.
