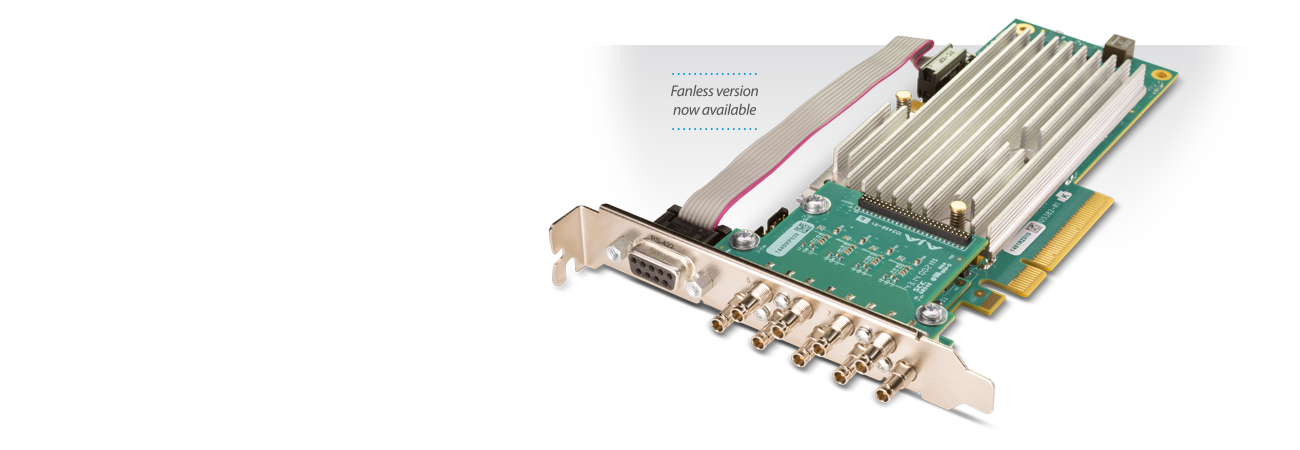

Corvid is the proven platform for digital uncompressed video and audio I/O, with support for SD and HD as well as 16-Channels of embedded 24-bit audio. Available in a standard sized PCIe card or 'Low Profile' for when space is of the essence, Corvid uses AJA's common API which is supported across multiple operating systems.
1
7
AJA HD10CEA SDI/HD-SDI to Analog Audio/Video Converter
Installation
Typically, HD10CEA installation consists of the following steps:
1.
Ensure the HD10CEA is disconnected from power.
Video Card Amazon
2.
Connect equipment to the convertor BNCs and cable snake BNCs/XLRs.
3.
Apply +5-18VDC power to the converter (AJA power supply model DWP or DWP-
U).
Specifications
Item
Specification
Inputs
SDI/HD-SDI w/Embedded Audio, 1x BNC
Formats
Standard Definition inputs supported:
525i 29.97 and 625i 25
High Definition inputs supported:
1080p component 23.98psf/24psf
1080i component 50/59.94/60
720p component 50/59.94/60
Outputs
SD Video: YPbPr - SMPTE, EBU-N10, Betacam, RGB,
NTSC, PAL, YC (S-Video)
HD Video: YPbPr, RGB
Audio: 4 Channel Balanced
Video/Audio Outputs on 25 Pin D Connector
2 SDI/HD-SDI Equalized Loop-Thru, 2x BNC
User Controls
External Dipswitch
Video Format
Pedestal
H/V Blanking
Audio Group 1 - 4
Audio Level (adjustable via switch selection):
+24, +18, +15, +12 dBu, Full Scale Digital
Size
Video Card Driver
5.8” x 3.1” x 1” (147 x 79 x 25mm)
Power
+5-18VDC, Regulated, 4 Watts
Requires Power Supply (AJA power supply model DWP or
DWP-U recommended)
